Brand Name : LH-tool®
Model Number : LH5300AB
Certification : ISO9001:2008 Standard
Place of Origin : China
MOQ : 200kgs
Price : Negotiation
Payment Terms : T/T
Supply Ability : 30 Tons per Month
Delivery Time : 15 Days
Packaging Details : Standard Carton Packing
Materials : Epoxy Resin
Color : Brown
Package : 5 kg 10kg
Density : 0.5
Hardness : 50-55D
Mixing Ratio : 1 more than 1
50-55D Density 0.5 g/cm 3 Hardness Pink Color Tooling Paste For Master Model

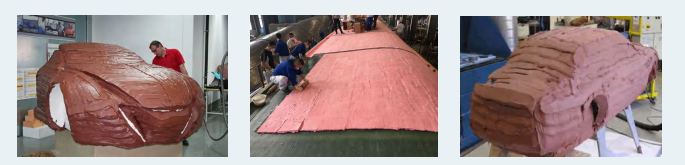

APPLICATION:
● Master model
● Manufacturing sample
● Automotive design modeling
PHYSICAL PROPERTIES
Type | Color | Mixratio | Working time | Gel time | Cured time |
LH 5300A (resin) | Brown | 1 | 20-30Min | 40 Min | 24 Hour |
LH5300B (hardener) | White | 1 |
CURED PARAMETER
Type | LH 5300 A/B |
Color | Brown |
Density(ISO 1183) | 0.50g/cm3 |
Cured Hardness (ISO 868) | 50-55shore D |
Thermal expansion coefficient (ISO 11359) | 55-60 x 10-6K-1 |
Thermal deformation temperature(ISO 75) | 50-60℃ |
Compressive strength (ISO 604) | 45-50 MPa |
Specifications | 10kg/barrel |
![]() |
Epoxy Resin Tooling Paste 50-55D Density 0.5G/Cm 3 Hardness Pink For Master Model Images |
