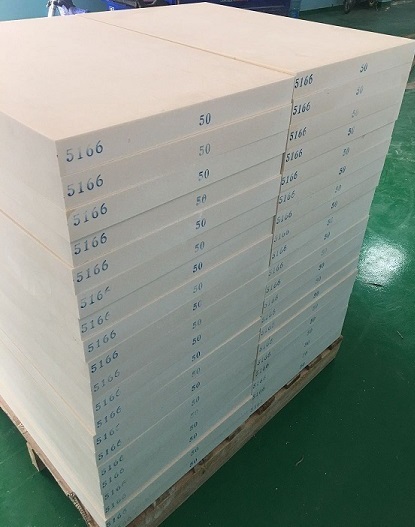

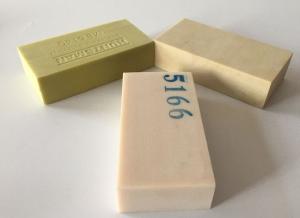

110Mpa Beige Polyurethane Board Thick 35mm High Compressive Strength

  • 1
  • 2

Brand Name : LH-tool®

Model Number : LH-5166MB

Certification : ISO9001:2008 Standard

Place of Origin : China

MOQ : 15 Sheets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 3000 Sheets Month

Delivery Time : 10 Days

Packaging Details : Standard Carton Packing

Materials : Polyurethane

Color : Beige

Size : 1500*500* 1000*500*

Density : 1.7

Hardness : 85-90

Thickness : 35mm 50mm 75mm 100mm

Contact Now

High compressive strength 110Mpa Beige Polyurethane Board 750x500 Thickness 35-300mm

MB5166 is a medium temperature, High density syntactic polyurethane board designed for the manufacture of accurate and stable master models and molds.

High Density Synthetic Epoxy Tool Board is designed to manufacture accurate and stable master models and molds. LH5166 is a high quality toolboard that provides exceptional performance while maintaining a cost effective solution.

LH5166 suitable for below 150 ° C, can be directly used in the production of parts. It can be machined to a high quality surface finish, which requires minimal sealing.

Lihong Mould is the world's largest manufacturer of molding, modeling and work sheet materials.

Stable in size

Excellent edge strength

In line with the industry standard, temperature resistance, compression, tensile, thermal expansion and other physical properties are good

Easy and fast machine

Good chip formation, non-stick sheet

Typical properties

Color

 Beige

Density

 1700 kg/m(3) BS150 1183-3:1999
Shore Hardness 87D BS150868: 1998
Uniaxial Compressive Strength 110 Mpa ASTM D694-02a
HDT 150ºC ASTM E 2092
Glass Transition Temperature 200ºC BS EN ISO 11357-2
Coefficient of Thermal Expansion 44x10(6)/ºC

ASTM 228-95
Flexural Strength 80 Mpa

BS 2782
Flexural Modulus 2,200 Mpa BS 2782
