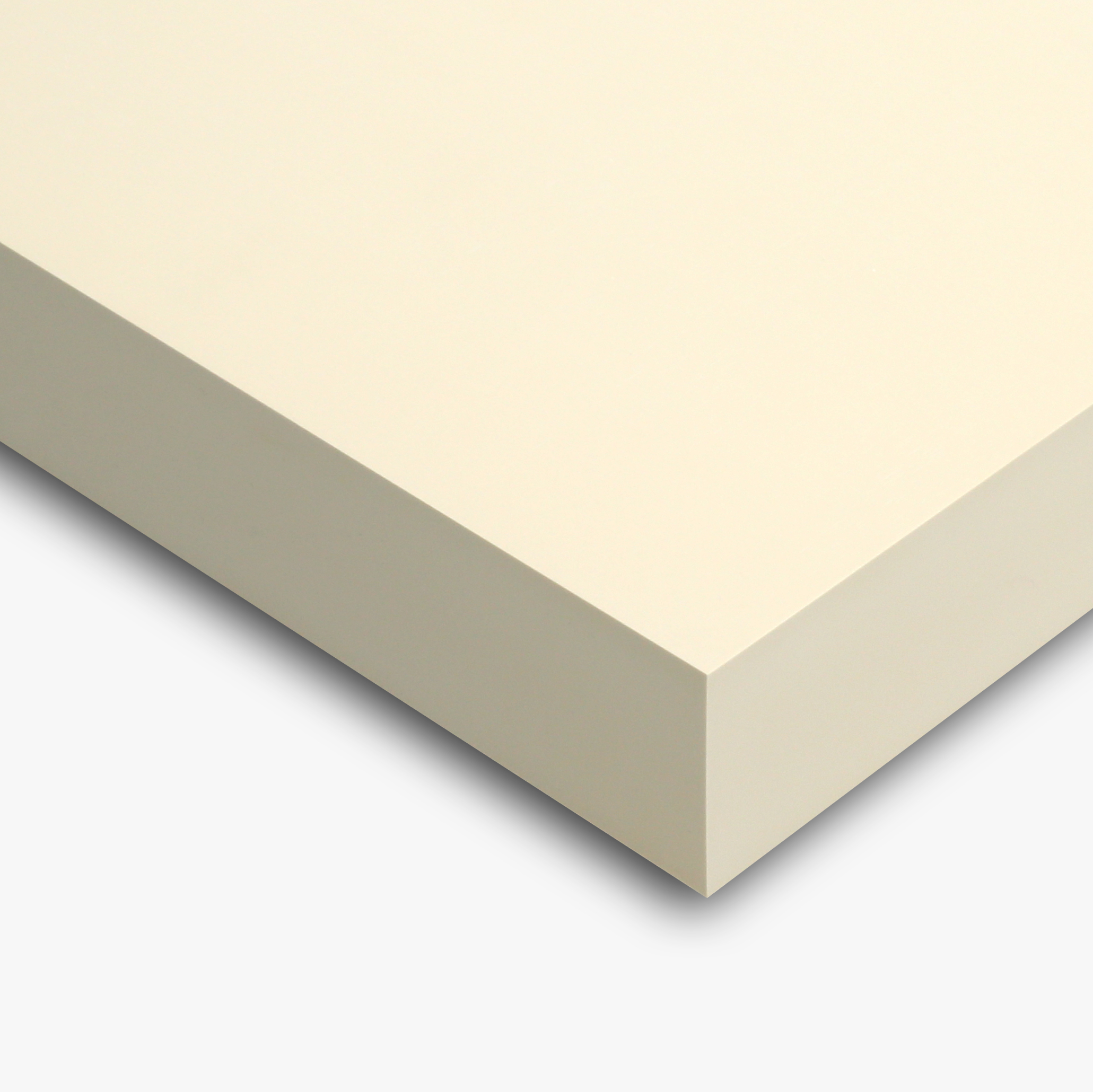

1000x500 Foundry Models Epoxy Tooling Board Heat Resistance

Density 1200 kg/m3 size 1000x500, foundry models with high mechanical stress

LH-Tool attaches great importance to the quality of its products. A continuous improvement process that steadily optimizes the quality of products, processes and services.

Depending on the requirements of the model or mold, different plates with densities ranging from 1200 kg/m³ can be selected. The wide range of densities allows us to select suitable plates in terms of surface quality and mechanical properties.

Due to low CTE, epoxy plates provide high heat resistance and excellent dimensional stability for use in prepreg applications.

TECHNICAL DATA

Product information on LH-TOOL® 1200

CHARACTERISTICS

• good temperature resistance
• very low coefficient of thermal expansion

APPLICATIONS

• fixtures and gauges
• tools for serial production of small batch sizes (e.g. draw die moulds and foam moulds)
• master and copy models
• galvano models with high mechanical stress
• foundry models with high mechanical stress
• lay-up tools

DIMENSIONS

1.200 x 400 x 50 mm
1.200 x 400 x 75 mm
1.200 x 400 x 100 mm
1.200 x 400 x 150 mm

Surfaces machined parallel.
Other dimensions on request.
