Low, medium and high density, multi-color processing plate suitable for mold manufacturing
In order to meet the needs of a variety of tool applications, we provide epoxy tool blocks and boards showing a range of physical properties and performance characteristics, including:
CNC can be high speed steel and carbide tool processing
Excellent dimensional stability to prevent tool deformation during high pressure forming/manufacturing
Extraordinary smooth surface finish, almost eliminating the need for hand polishing tools
Low density
Good compressive strength
Full thickness range; The board is 24 inches in size. Wide x 60 inches long x 2, 3 and 6 inches. thick
Color and performance matching adhesive and repair paste
Key Properties
- Easily shaped and machined
- Low coefficient of thermal expansion
- Good dimensional stability
- Low coefficient of thermal expansion
- Good dimensional stability
- Good compressive and flexural strength
Applications
master models, cubing models, patterns
pattern plates and core boxes, machined negatives and positives,
models, molds and tools, hammer forms and jigs

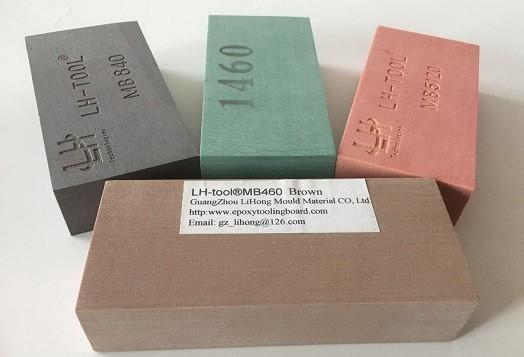

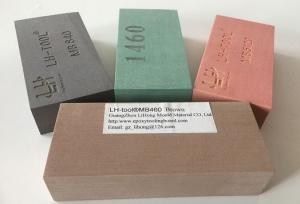

| Product | Color | Density, lb./ft.3 (g/cm3) | Hardness, Shore D | CTE, in./in./°F (cm/cm/°C) | Heat Distortion Temperature, °F (°C) | Compression Strength, psi (MPa) | Description | | LH-460 | Brown | 0.77 | 70 | (45x10-6) | 100-120 | 45 | Low-temperature polyurethane syntactic with excellent surface finish | | LH5120 | Red | 1.25 | 82 | (46x10-6) | 75-80 | 80 | high temperature polyurethane syntactic with excellent surface finish | | LH-1460 | Green | 1.46 | 84 | (45x10-6) | 80-90 | 80 | High-strength polyurethane | | LH-840 | Purple | 1.0 | 78 | (38x10-6) | 120-140 | 60 | Premium-quality Polyurethane syntactic | |
